Galvanoplot

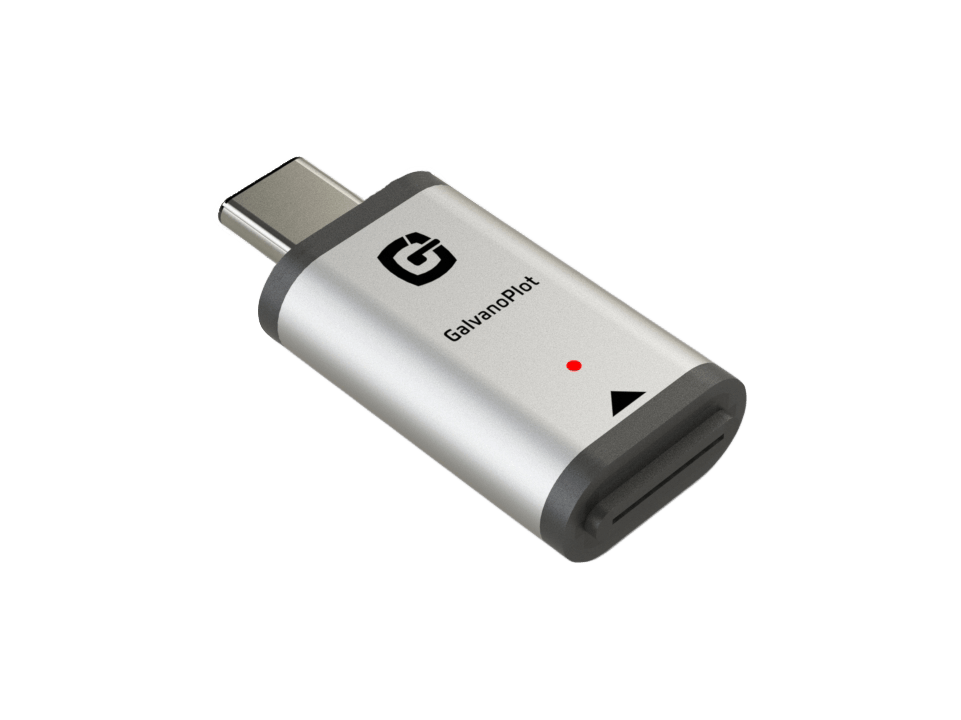

Galvanoplot GX102
Galvanoplot GX102
In stock
Couldn't load pickup availability
Description:
Super-compact series potentiostats are the smallest electrochemistry interface on the market, just slightly larger than one cent. A true on-site analysis in electrochemical research is possible using most popular electrochemical techniques.
These super small and affordable instruments enable you to develop applications tailored for your research needs. Super-compact series instruments are optimized for screen-printed sensor and biosensor applications
Directly plug into an Android mobile device through OTG port for a true on-site analysis experience.
Advanced PC software enables control of multiple units from same screen and at the same time, setting up parallel replicates and spools for a more customized multiplexing experience.
Defining the standard for screen-printed sensor interfaces.
- Compact Potentiostat and affordable
- Advanced software with multiplexing capability
- Covering all common electrochemical techniques
- Wired connectivity through USB and OTG
- Android mobile device compatibility
- Tailored to your needs for a budget
Specifications:
| Operating Mode | Potentiostat |
| Current Resolution | 0.002% of Current Range (130pA on lowest current range) |
| Maximum Current | ±750 µA |
| Number of Current Ranges | 7 and Autorange |
| Potential Accuracy | ≤0.1% |
| Potential Scan Range | ±1.08V |
| Potential Resolution | 250 µV |
| PC Interface | USB Type C |
| Power | USB; 5V/20mA Max |
| Dimensions | 35 x 15 x 7 mm |
| Weight | 4 gm |
