Stainless Steel Swagelok Type Electrochemical Test Cell

This stainless steel Swagelok-type electrochemical cell is a modular and reusable cell ideal for battery research, supercapacitor studies, and general electrochemical testing. The cell design allows easy assembly and disassembly, ensuring reliable performance and repeatable results.

Key Features:

• Material: SS316 stainless steel for excellent corrosion resistance and mechanical strength, and PTFE shell

• Electrode Compatibility: Suitable for disc-type electrodes or pelletized powders

• Electrode Pins: Stainless steel current collectors for stable electrical contact

• Insulator: Chemically resistant PTFE spacer ensures electrical isolation between electrodes. 13mm ID

• Sealing Mechanism: Screw-threaded assembly with knurled nuts for tool-free tightening

Typical Applications:

• Lithium-ion, sodium-ion, and other battery research

• Supercapacitor and capacitor testing

• Electrochemical impedance spectroscopy (EIS)

• Cyclic voltammetry (CV) and galvanostatic charge-discharge (GCD) tests

• Electrode material screening and development

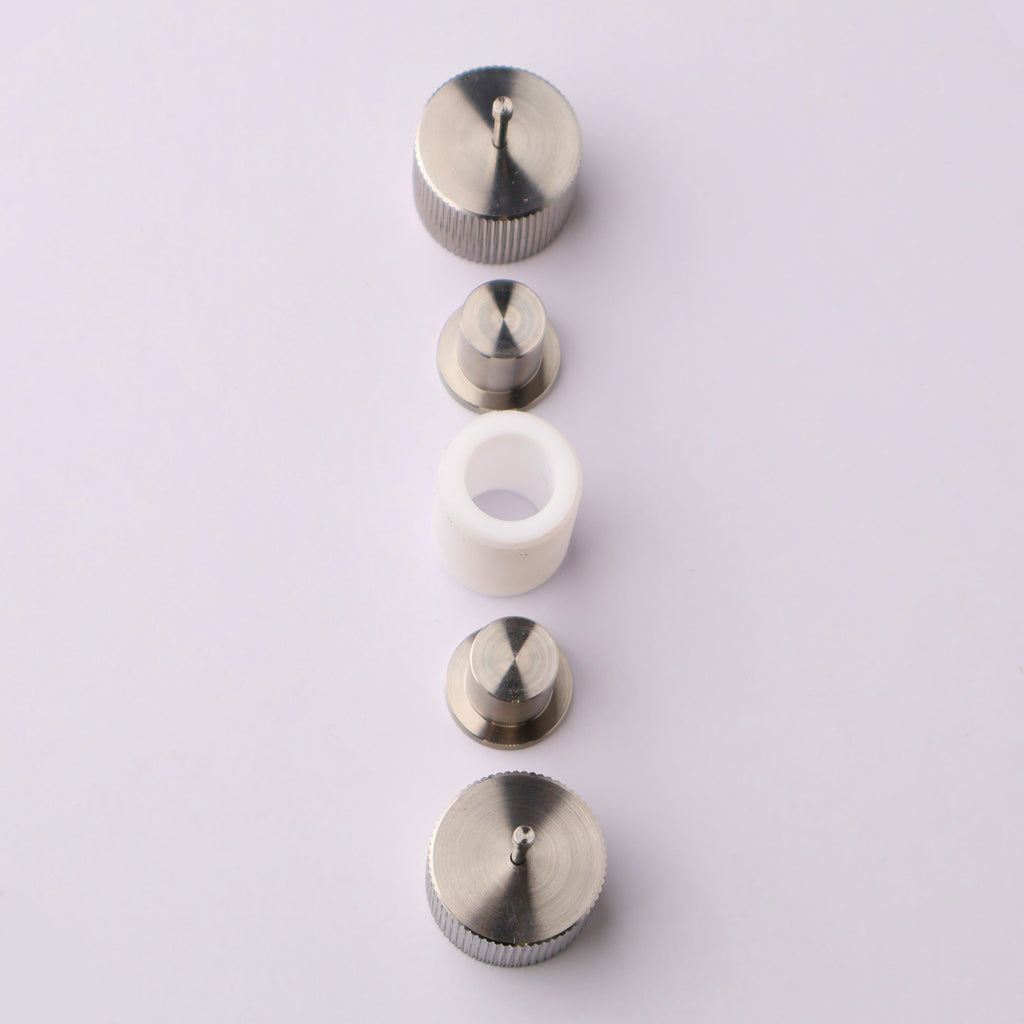

Package Includes:

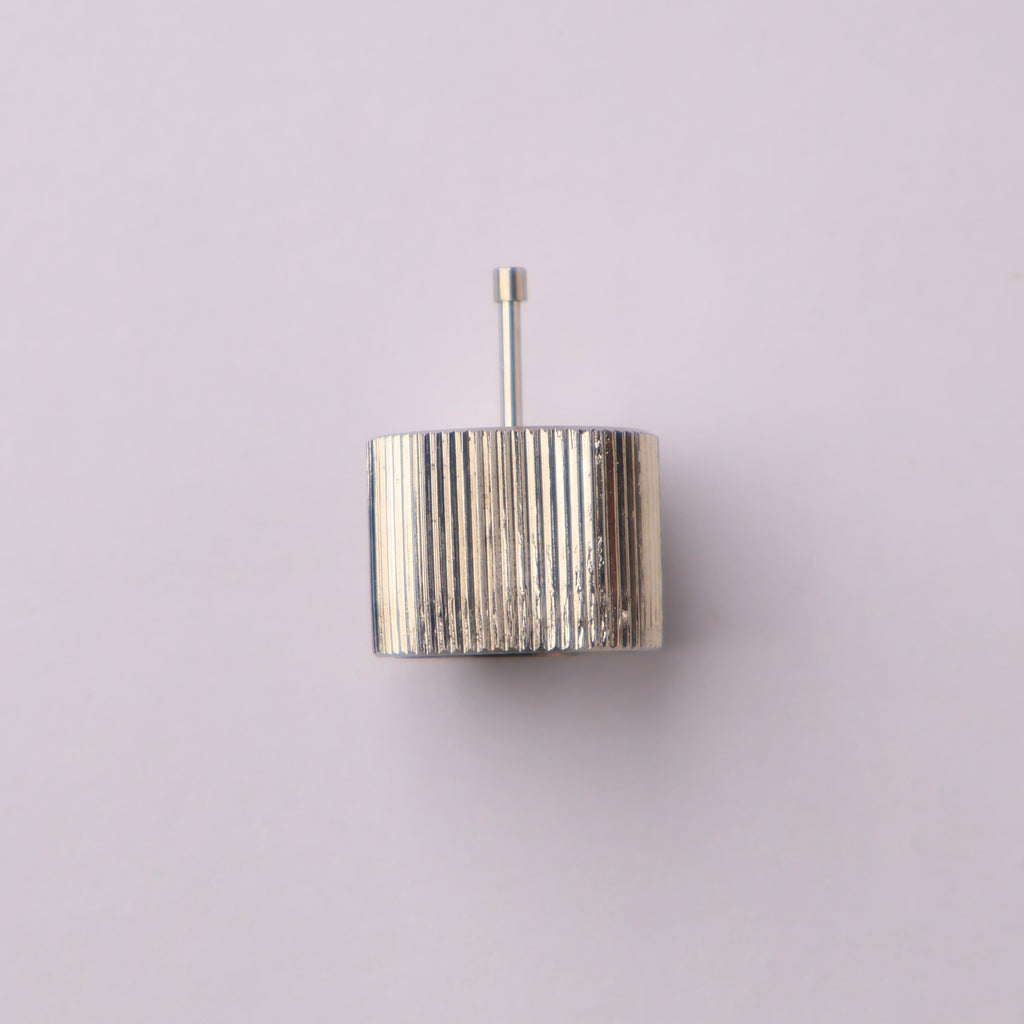

• 2 × Stainless steel Swagelok caps with current collectors

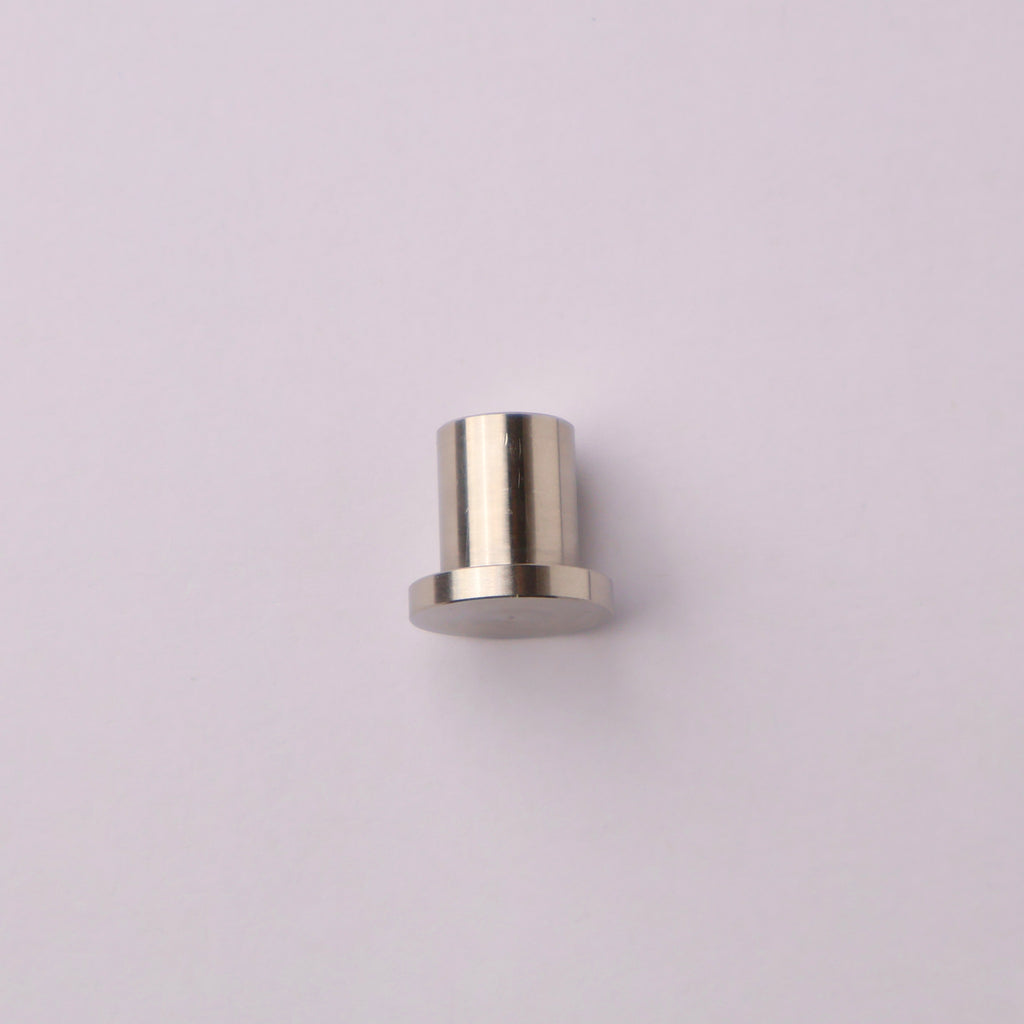

• 2 × SS plungers (electrode contacts)

• 1 × PTFE insulating sleeve

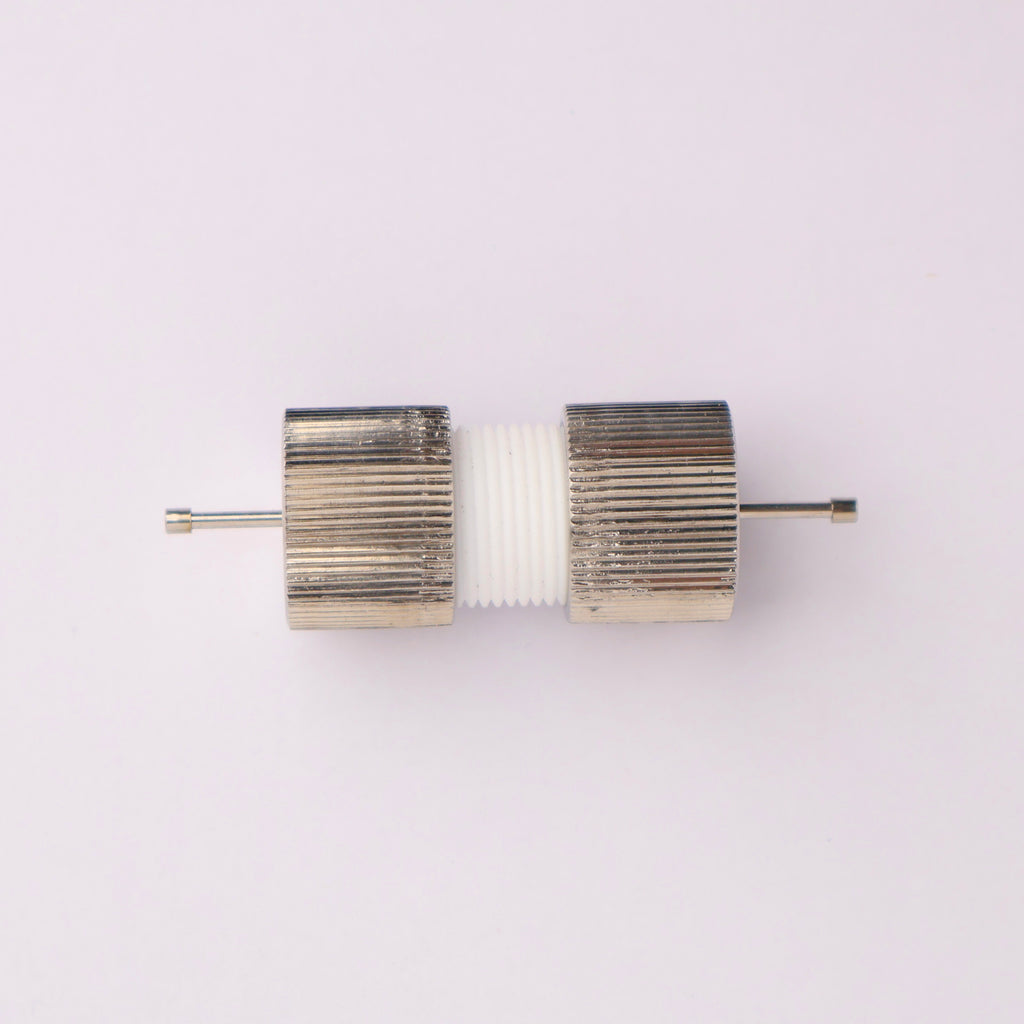

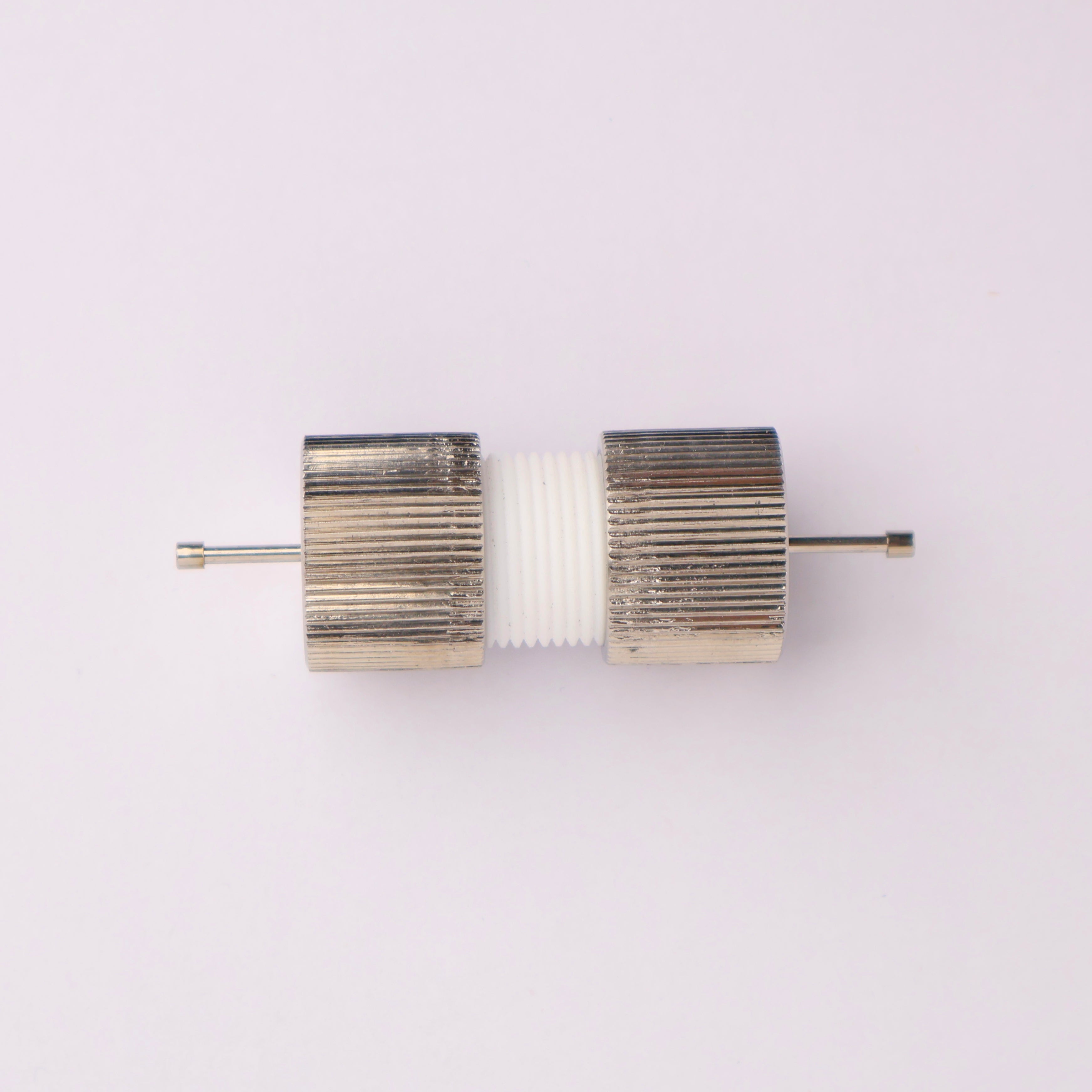

• 1 × Complete assembled cell (as shown)

Note: Electrodes and separator materials are not included and must be purchased separately.
