How to Check Ag/AgCl Reference Electrode
|
Time to read 1 min
Ag/AgCl reference electrode is commonly used in electrochemistry due to their stable and reproducible potential. However, they can degrade over time. To ensure accurate measurements, it's essential to periodically check their performance. Here are several ways to verify the condition and potential of an Ag/AgCl reference electrode.
1. Open Circuit Potential (OCP) vs Master Ag/AgCl Reference Electrode
The simplest and most reliable method is to compare the test electrode with a well-maintained master Ag/AgCl electrode.
- Place both the electrodes in the same electrolyte (e.g. 3 M KCl)
- Connect them to a potentiostat and perform OCP (open circuit potential) experiment.
- The potential difference should ideally be within ±5–10mV. Any significant indication could indicate drift or contamination.

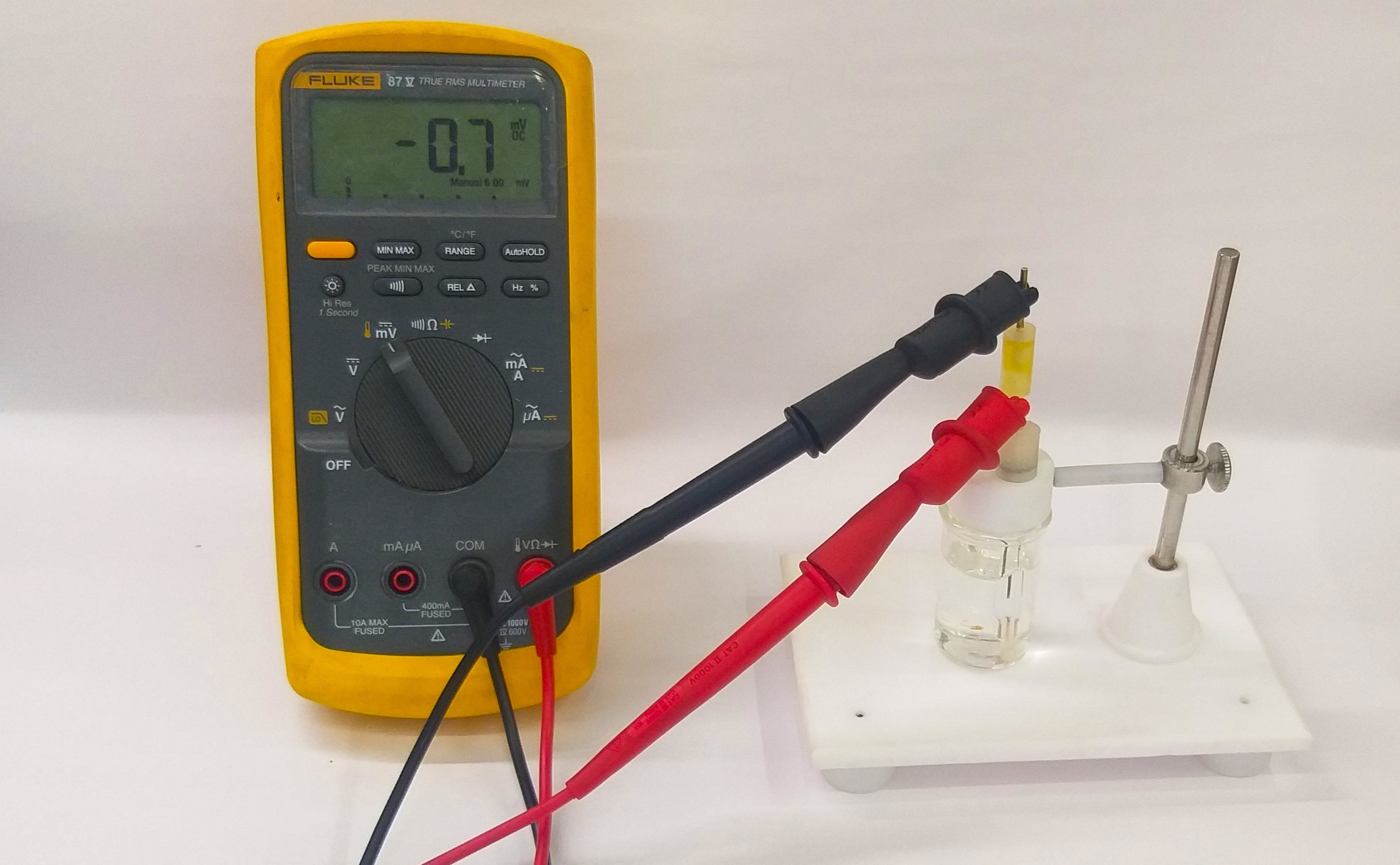

Alternatively, you can also check potential of the test electrode against master electrode via multimeter.
2. Use a Standard Hydrogen Electrode (SHE)
For absolute calibration use a primary reference electrode such as Standard Hydrogen Electrode.
- Immerse both the SHE and your Ag/AgCl electrode in the same electrolyte.
- Measure the potential difference.
- Compare it to the theoretical value for your specific Ag/AgCl configuration.
Saturated Ag/AgCl should read approximately +0.197 V vs SHE at 25°C.
3. Perform Cyclic Voltammetry (CV) with a known Redox Couple
Another effective method is to use a well-defined redox couple, such as ferricyanide/ferrocyanide. It can be used indirectly to check the accuracy of the reference electrode.
- Set up a three-electrode cell using your Ag/AgCl as the reference.
- Run a CV and determine the formal potential of the redox couple.
- Compare the observed midpoint potential to the literature value.
- A shift of more than ±40–50 mV may indicate that your reference electrode has drifted.
However, such shifts can also result from a poorly prepared working electrode or improperly made solution, not necessarily from the reference electrode.
4. Visual and Physical inspection
Before electrical checks, always do a quick physical check:
- Look for any salt crystallization, dried-out junctions, or discoloured internal wires.
- Ensure the filling solution is fresh and clear.
- Refill or clean the electrode if necessary. A reference to a cleaning protocol
Conclusion
Routine inspection and calibration of Ag/AgCl reference electrodes are essential to maintain accurate electrochemical measurements. Regular verification ensures that potential drift or contamination is identified early, reducing errors in experimental results. To prolong the electrode's lifespan, always store it in 3 M KCl solution and handle it with care during cleaning or refilling.
